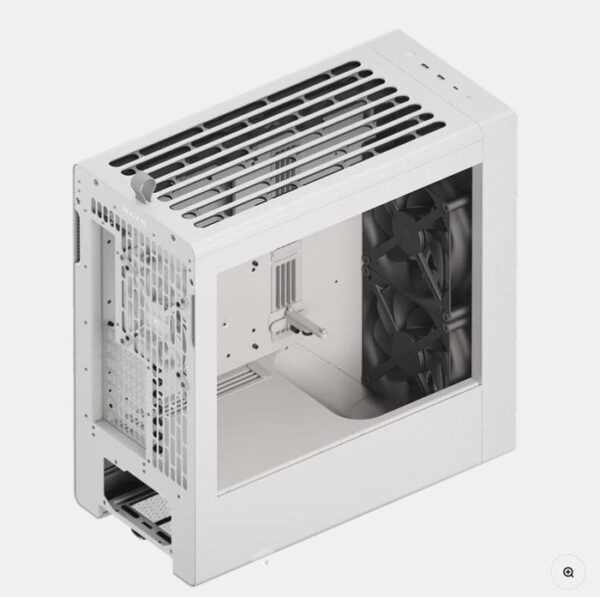

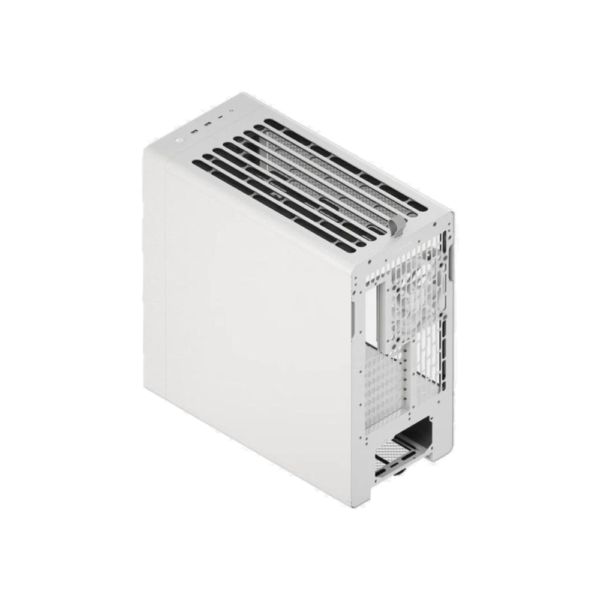

HAVN Casing BF 360 Flow Mid Tower E-ATX 3 Fan – White

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

Form Factor : Mid Tower
Material : SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H) : 515 x 254 x 522.6 mm
Net Weight : 14.79 kg
Warranty : 1 y
Front I/O
USB 3.2 Gen 2 Type-C x1
USB 3.2 Gen 1 Type-A x2
Audio Jack x1
Power & Reset Button x1
Motherboard Support : E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots : 7
Fan Support
Maximum Amount: 6
Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
Front: 2 x 180 mm
Left: N/A
Right: N/A
Bottom: N/A
Rear: 1 x 140 / 1 x 120 mm
Fan PWM Repeater
Fan Ports: 1 x PWM repeaters, 6 ports total
Location: 1 x Cable Management Tray
Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port’s signal.)
Fan Rated Voltage: 12V
Fan Safety Current: Up to 2.6A across 6 ports
Power Connector: 1 x SATA Power
Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max)
CPU Tower Cooler Clearance
Height: Up to 195 mm.
Liquid Cooling Support
Top: 240 / 280 / 360 mm
Front: N/A
Left: N/A
Right: N/A
Bottom: N/A
Graphics Card Clearance
Length: Up to 410 mm
Width: Up to 195 mm.
GPU Support
1 – 4.5 Slots
RAM Clearance
If the radiator & fans thickness is greater than 80 mm: 280 mm – 40 mm / 360 mm – 60 mm
Power Supply Support : ATX
Length: Up to 200mm (Clearance – 260mm)

Storage
Right Mount: 2 Storage Bays: 2 x 3.5” / 8 x 2.5”
Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5”
Storage Bay Included: 2x (2 x 3.5” / 4 x 2.5”)

Dust Filter
Front: 1 (Built-in)
Top: 1 (Built-in)
Rear Bottom: 1 (Removable)

Pre-installed Fans
2x H18 Fan (Front) – Case Version
1x H14 Fan (Rear) – Case Version
