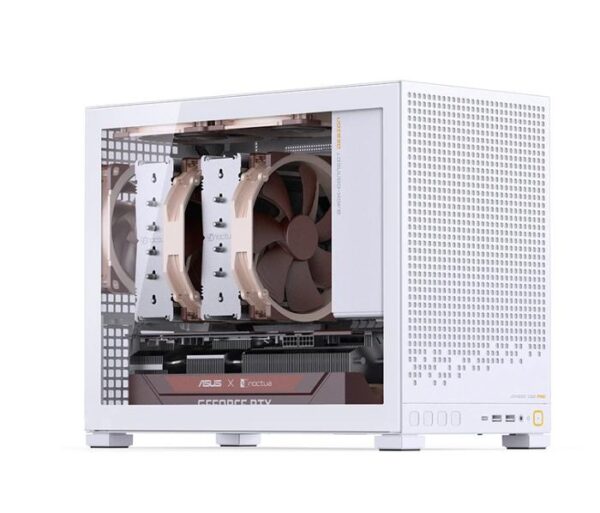

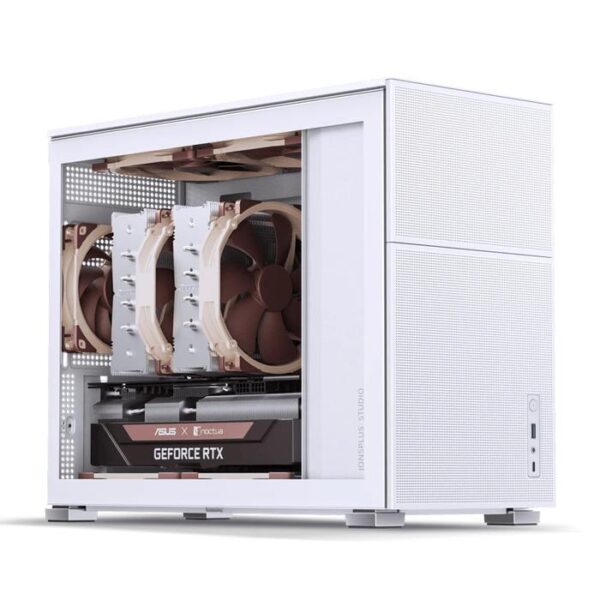

JONSBO Casing D32 Pro M-ATX – White

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

WAJIB KONFIRMASI STOCK SEBELUM MELAKUKAN ORDERAN

Halo Selamat Datang di DISTRIBUTORKOMPUTER :
PRODUK YANG KAMI JUAL BERGARANSI RESMI DAN JUGA ORIGINAL

CATATAN :

Details
Dimensions (w/o feet and other protrusions) : 384mm x 207mm x 302mm (depth/width/height)
Dimensions (with feet and other protrusions) : 396mm x 207mm x 314mm (depth/width/height)
Material Chassis ：SPCC Steel(0.7mm+0.8mm)
Motherboard Support Size : Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be switched to B mode)

Drive Bay ：
2.5″ Inch : up to 4, depends on other hardware configurations
3.5″ Inch : up to 2 (shared with the 2 x 2.5″ mounts), depends on other hardware configurations

Front I/O Port ：
USB3.2 Gen-1 Type-A x 2
USB3.2 Gen 2 Type-C x 1
AUDIO x 1
MIC x 1

Cooling Fan Support ：
Top : 2 x 120mm or 2 x 140mm
Rear : 1 x 120mm
Bottom : 3 x 120mm or 2 x 140mm, depends on other hardware configurations

Radiator support ：
Top : Up to 240mm

ATX PS2 PSU Clearance：
• When the GPU is installed in the first PCI-E slot of the chassis, the maximum length of the power supply is 150mm, and the recommended length is ≤140mm
• When the GPU is installed in the second PCI-E slot of the chassis, the maximum length of the power supply is 170mm, and the recommended length is ≤160mm
*This mounting position depends on the motherboard, please refer to the motherboard specifications
• When the GPU length is ≤288mm and the power compartment partition is removed, the power supply length is limited to 200mm (not compatible with 16A plugs)
SFX PSU Support ：SFX / SFX-L

CPU Air Cooler Clearance ：
In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)
In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU)

GPU Card Clearance ：Up to 365mm
Weight ：N.W. 4.6kg / G.W. 5.8kg
