Spesifikasi :
GARANSI RESMI 3 TAHUN

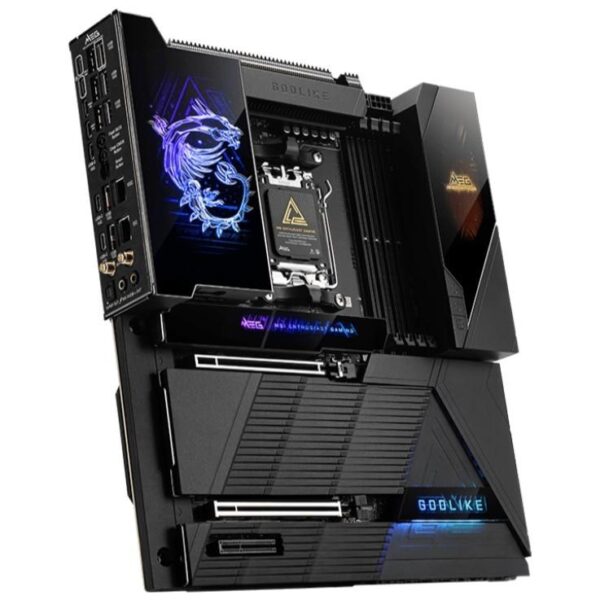

MEG X870E GODLIKE
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Storage 7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
PCB Info E-ATX
304.8mmx277mm
