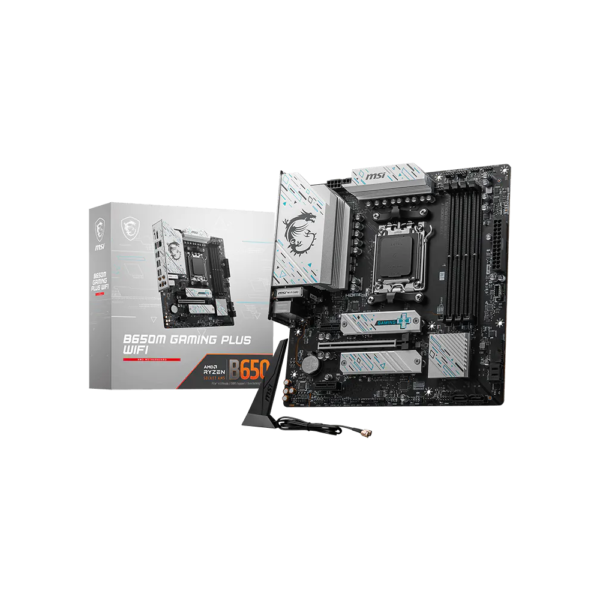

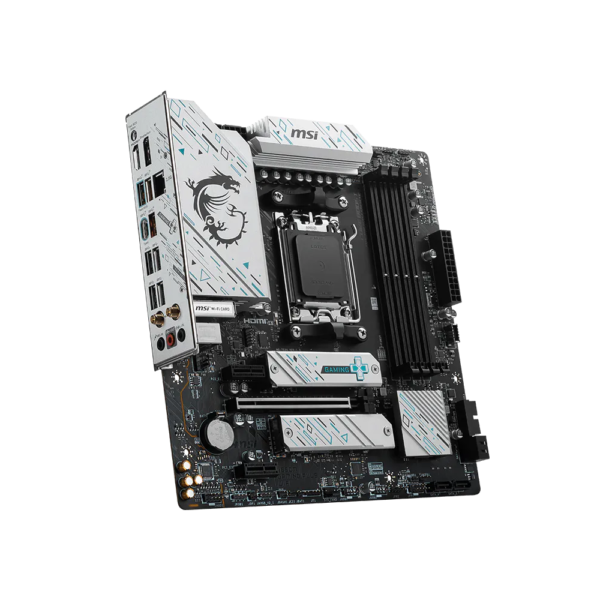

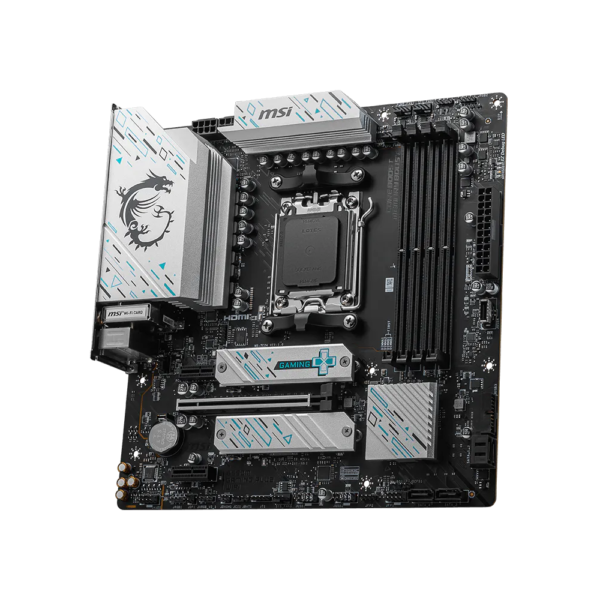

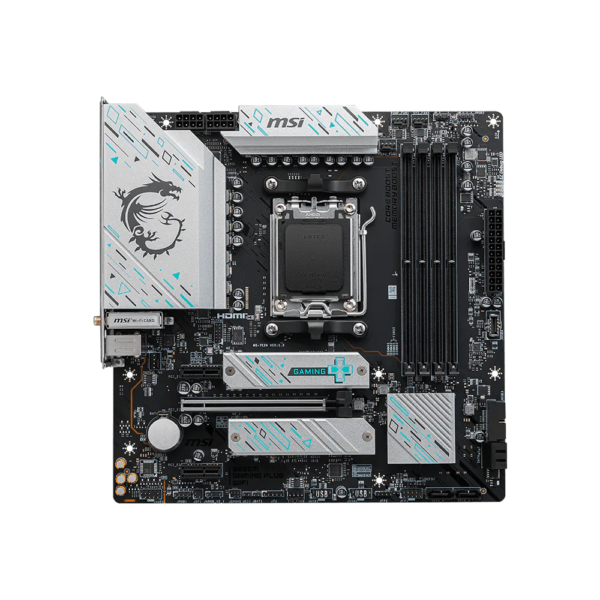

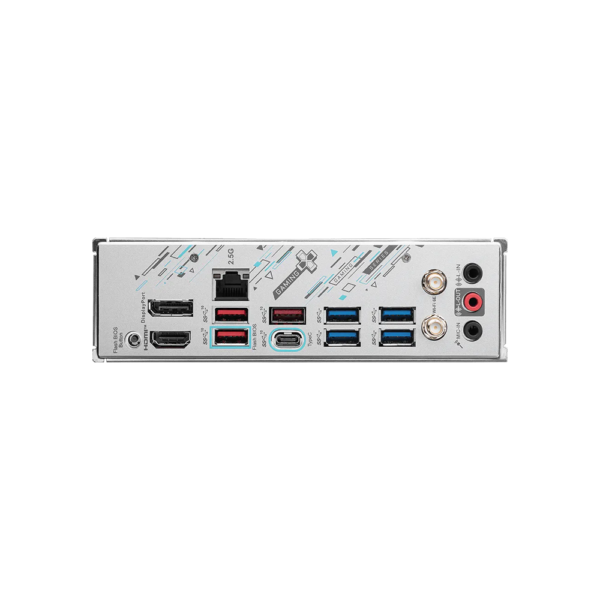

MSI Motherboard B650M Gaming Plus Wifi – Socket AM5

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

CHIPSET
– AMD B650

CPU
– Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
– Socket AM5

MEMORY
– 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
– Supports Dual-Channel mode
– Supports AMD EXPO

ONBOARD GRAPHICS
– 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
– 1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

SLOT
– 1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
– 2x PCI-E x1 slot

STORAGE
– 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
– 4x SATA 6G

LAN
– Realtek RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
– AMD Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX

AUDIO
– Realtek ALC897 Codec
– 7.1-Channel High Definition Audio

OPERATING SYSTEM
– Support for Windows 11 64-bit, Windows 10 64-bit

PCB INFO
– mATX
– 243.84mmx243.84mm
