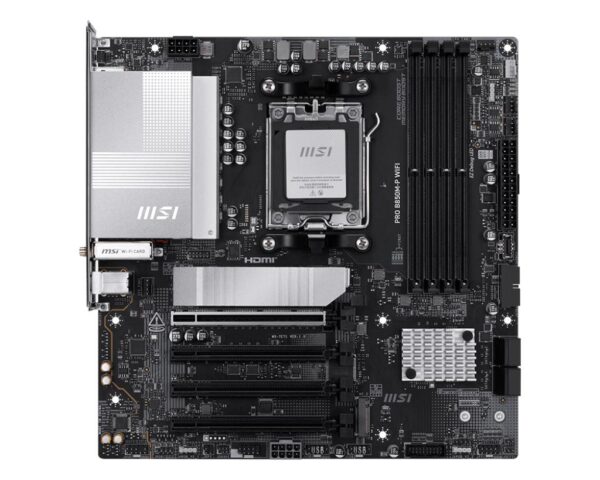

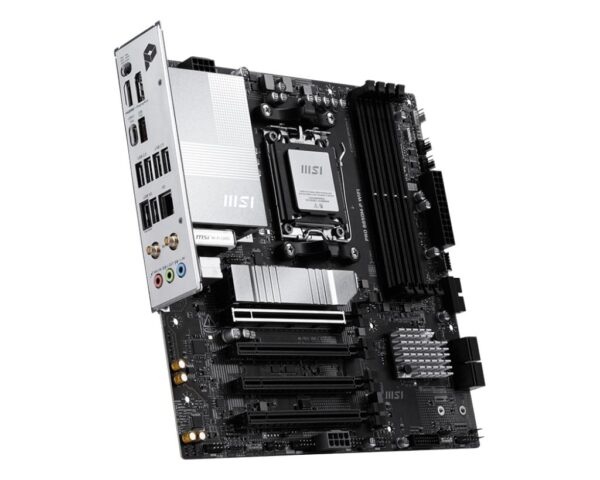

MSI Motherboard PRO B850M-P WiFi mATX – Socket AM5 DDR5

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

WAJIB KONFIRMASI STOCK SEBELUM MELAKUKAN ORDERAN

Halo Selamat Datang di DISTRIBUTORKOMPUTER :

PRODUK YANG KAMI JUAL BERGARANSI RESMI DAN JUGA ORIGINAL CATATAN :

3.WAJIB TAMBAH PACKING KAYU UNTUK CASING

Chipset AMD B850

CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8200+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard only have single-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page

Onboard Graphics 1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot 4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio Realtek ALC897

7.1-Channel High Definition Audio

Storage 3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices

4x SATA 6G

M2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M2_2 slot

• Supports up to PCIe 4.0 x4

• Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices

*RAID 5 configuration is only supported by Ryzen 9000 series processors.
