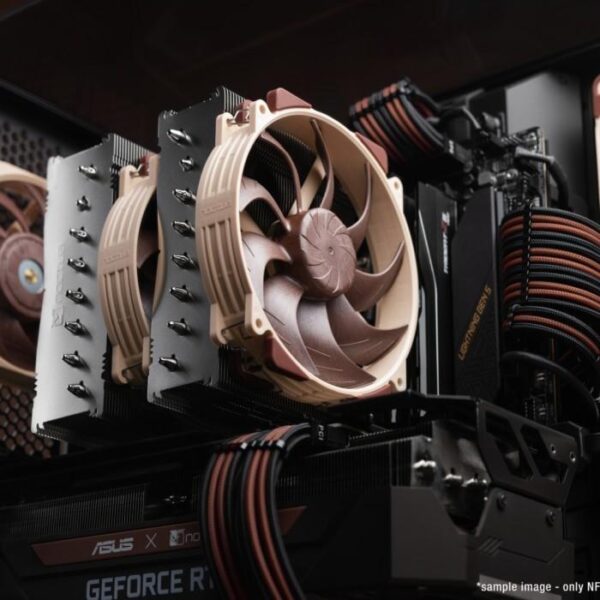

NOCTUA Fan Casing NF-A14x25r G2 PWM Next Gen 140mm

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

Halo Selamat Datang di DISTRIBUTORKOMPUTER :
PRODUK YANG KAMI JUAL BERGARANSI RESMI DAN JUGA ORIGINAL

CATATAN :
1. Wajib menanyakan stok sebelum order
3. Pesanan QTY bisa menghubungi ke admin kami

DISTRIBUTORKOMPUTER

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Size
– 140x140x25 mm

Mounting hole spacing
– 105×105 mm

Connector & pin-configuration
– 4-pin PWM

Cable length
– 20cm + 30cm NA-EC1 extension cable

Bearing
– SSO2

Blade geometry
– Progressive-Bend impeller

Frame technology
– AAO (Advanced Acoustic Optimisation)

Material Sterrox
– LCP

Rotational speed (+/- 10%)
– 1500 RPM

Rotational speed with L.N.A. (+/- 10%)
– 1250 RPM

Airflow
– 155.6 m³/h

Airflow with L.N.A.
– 127.1 m³/h

Acoustical noise
– 24.8 dB(A)

Acoustical noise with L.N.A.
– 19.7 dB(A)

Static pressure
– 2.56 mm H₂O

Static pressure with L.N.A.
– 1.3 mm H₂O

Input power (max.)
– 2.28 W

Max. input current
– 0.19 A

Operating voltage
– 12 V

Voltage PWM signal
– 5 V

MTTF
– > 150,000 h

Scope of delivery
– NA-RC16 Low-Noise Adaptor (L.N.A.)
– NA-YC1 4-pin PWM splitter cable
– NA-EC1 30cm extension cable
– 4x NA-AV2 anti-vibration mounts
– Fan screws

Warranty
– 6 years
