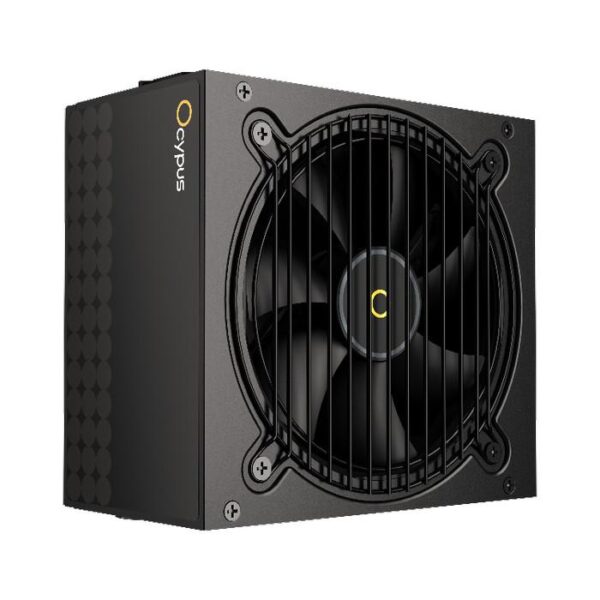

OCYPUS Power Supply Gamma P550 80+

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

Model No: P550-WD
Type: ATX 2.53
Output Power : 550W
Physical Dimensions: 150×140×86mm(W×L×H)
80PLUS Certification: 80 PLUS 230V EU WHITE
Efficiency : 85% Under Typical Load(50% Loading)
Topology : Active PFC+Double tube forward+DC to DC
Net Weight: 1.45kg
AC Input : 200-240V 50~60Hz 8A
Protection: OVP/SCP/OPP
Hold up time: 16ms(75% Load)
Safety: CB/CE/UKCA/EAC/RCM/TUV/RoHS
Environmental Compliance: RoHS
Capacitors :Taiwan bulk capacitor
Fan Type : Hydraulic bearing
Fan Size : 120mm
Fan work mode: Thermal Control
Modularity: Non modular
DC output +3.3V 15A 100W
+5V 15A
+12V 54.1A 649.2W
-12V 0.3A 3.6W
+5VSB 2.5A 12.5W
“
Output wire quantity” Main Power Connector(24 Pin)×1 550mm
CPU(4+4)×2 610mm+150mm
PCI-E(6+2)Pin×2 510mm+150mm
SATAx3&4Pin Peripheral×1 450mm+150mm+150mm+150mm
“
Output wire quantity” Main Power Connector(24 Pin)×1 1
CPU(4+4)×2 1
PCI-E(6+2)Pin×2 2
SATA×3&4Pin Peripheral×1 2
