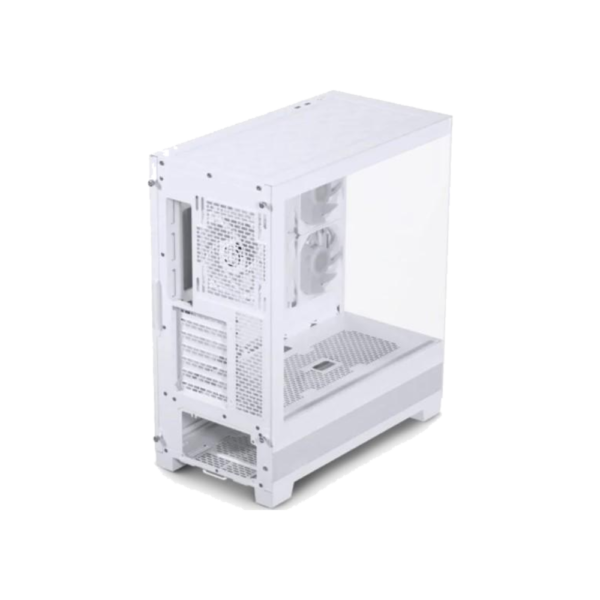

PHANTEKS Casing XT View Mid Tower – White

KAMI MENJUAL PRODUK ORIGINAL DAN BERGARANSI RESMI

WAJIB DIBACA :

1. WAJIB VIDEO UNBOXING PADA SAAT TERIMA PAKET DAN TANPA JEDA

2. PESANAN SECARA QTY BISA LANGSUNG MENGHUBUNGI ADMIN

Spesifikasi :

XT View
XTreme space, Cooling & Value

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.

Build for the Future
UNLOCK THE ZERO-CABLE SETUP
Mainboards with hidden connectors on the rear-side are fully supported by the XT Pro chassis.
Support for MSI Project Zero mainboards.
Support for ASUS BTF mainboards.

Specifications
General
Case Dimensions 440 x 230 x 500 mm
Form Factor Mid-Tower
Mainboard Support E-ATX* | ATX | Micro-ATX | Mini-ITX *Up to 280mm wide
Materials Steel chassis | Tempered glass | ABS plastic
Side Window Yes
PCI Slots 7
Vertical GPU Support 3-slots Riser Cable sold separately
Internal 2.5″ Bay 5 + 1x 3.5″ HDD
Internal 3.5″ Bay 2 + 3x 2.5″ SSD

Front I/O
1x USB-C 3.2 Gen2
1x USB 3.0
Microphone | Headphone combo
Power button
Reset button
D-RGB mode button
D-RGB color button

Fans
Total Fans 120 mm | 140 mm 10x | 6x
Top 3x | 2x
Front 3x | 3x
Rear 1x | 1x
Midplate 3x

Radiators
Top Max. 360
Side Max. 240 *Only with vertical GPU bracket
Rear 120

Clearance
CPU Cooler Height 184 mm | 7.24 in
GPU Length 415 mm
GPU Width 184 mm
Power Supply Length 270 mm
Top Radiator Length x Width x Height 415 x 138 x 60 mm
Side Radiator Length x Width 305 x 120 x 62 mm*Only with vertical GPU bracket

Extra
Net Weight 7.55 kg
Gross Weight 9.45 kg
Warranty 5 Years limited

Learn more
Scope of Delivery
1x XT View chassis
3x M25-120 D-RGB fans
Accessory 30x Zip ties
Screws
30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
12x 30mm Fan Screw
1x Motherboard stand-off
1x Stand-off removal tool
